Touch Information Kiosk QS55 Deployed for the State Emergency Service in Dnipropetrovsk Region
In April 2025, QSolutions PRO LLC delivered a single-unit deployment of the in-house manufactured QS55 touch information kiosk to the Main Department of the State Emergency Service of Ukraine in Dnipropetrovsk Region — a 55-inch 4K interactive terminal with a 5 mm anti-vandal glass front, custom edge-lit DSNS emblem cut into the body, and Windows 11 Pro with Active Directory integration.
A purpose-built information point for the regional DSNS headquarters
The Main Department of the State Emergency Service of Ukraine in Dnipropetrovsk Region (Головне управління ДСНС у Дніпропетровській області) requires a publicly accessible information terminal at its regional headquarters in Dnipro. The terminal serves as a permanent point for displaying emergency information, regulatory notices, regional safety messaging and interactive content for citizens and visitors arriving at the building.
QSolutions PRO LLC won the open procurement procedure published on the Prozorro public-procurement platform (UA-2025-03-27-010408-a) and manufactured a single QS55 floor-standing touch terminal in its own production line, with body branding, custom light-cut emblem and configuration tailored to DSNS requirements.
Open Public Procurement
Won through an open procedure on Prozorro (martial-law procedure, UA-2025-03-27-010408-a), with a comparative technical specification table confirming full compliance against every published requirement.
In-House Manufacturing
QS55 model designed, fabricated, painted (RAL 7016) and assembled by QSolutions PRO LLC (EDRPOU 45344525) at our own production facility in Kyiv — body, electronics integration and software configuration handled end to end.
Custom Light Emblem

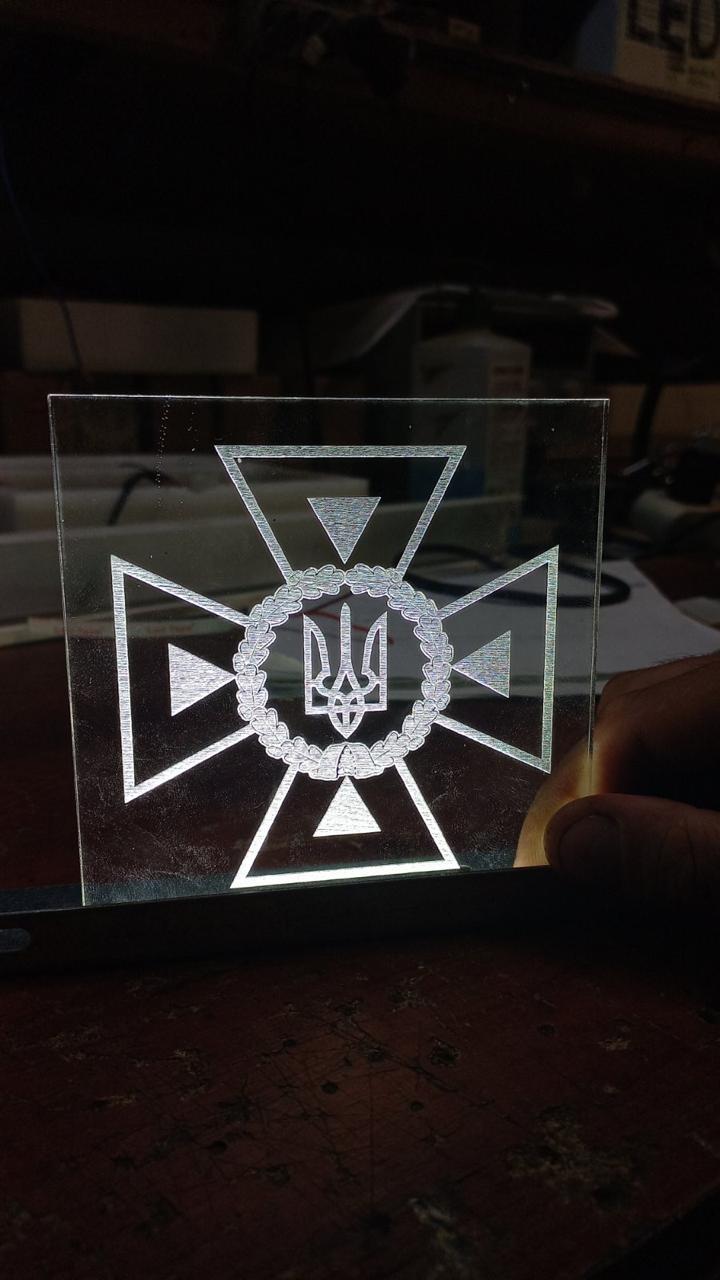

DSNS regional emblem precision-cut into the lower body panel, fitted with an engraved acrylic insert and edge-lit LED back-light — illuminated branding integrated into the chassis rather than applied as a sticker.
Anti-Vandal Build
5 mm tempered anti-vandal glass front, painted steel chassis, locking rear service door with ventilation grilles. Designed for permanent installation in a public-facing area without supervision.
From CAD model to delivery
What was delivered to Dnipro
55″ 4K Ultra HD Display
Vertical floor-standing 55-inch panel at 3840×2160 resolution, 60 Hz refresh rate, 450 cd/m² brightness, 16:9 aspect ratio. Built-in stereo speakers (2×3 W).
20-Point Multi-Touch Glass
5 mm tempered anti-vandal protective glass with 20-point simultaneous touch detection — supports gestures, pinch, multi-finger interaction for content navigation.

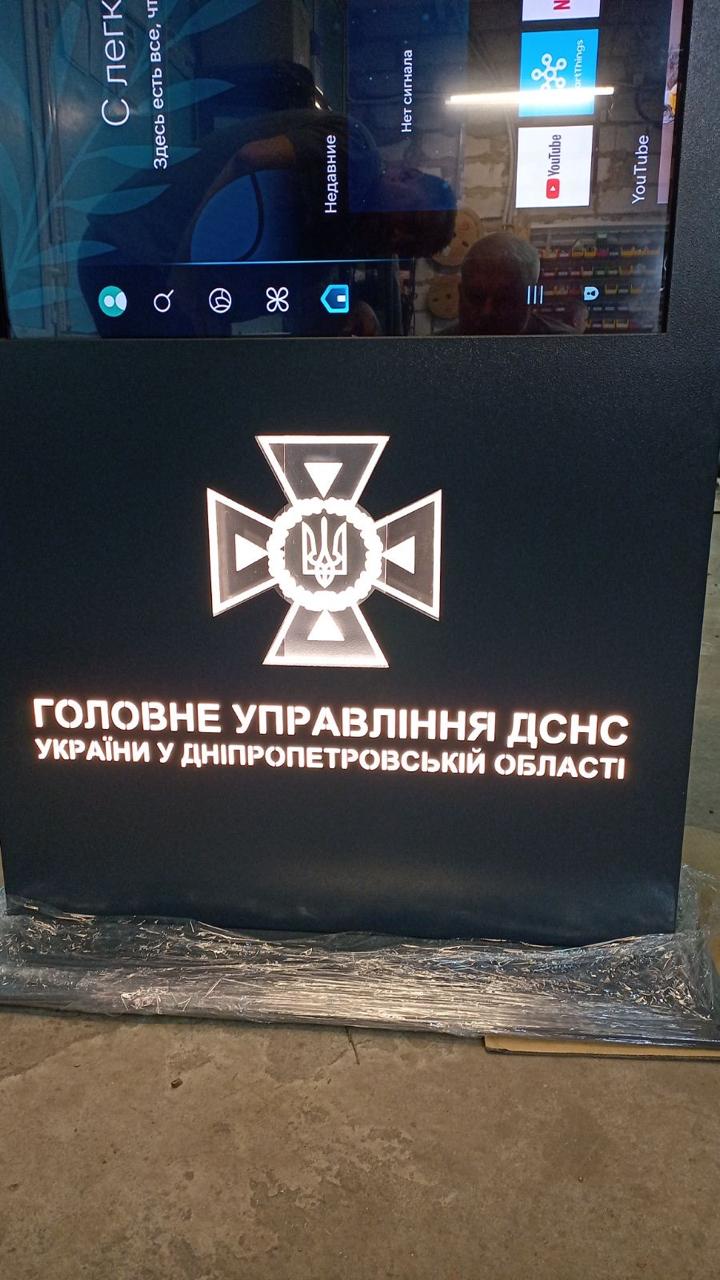

Edge-Lit DSNS Emblem
Regional DSNS emblem and “ГОЛОВНЕ УПРАВЛІННЯ ДСНС УКРАЇНИ У ДНІПРОПЕТРОВСЬКІЙ ОБЛАСТІ” lettering cut into the chassis and fitted with engraved acrylic and LED back-illumination.
Windows 11 Pro + Active Directory
Genuine Microsoft Windows 11 Pro 64-bit (Ukrainian edition) with Active Directory integration support, OEM-activated via OA 3.0 with the activation key embedded in BIOS.

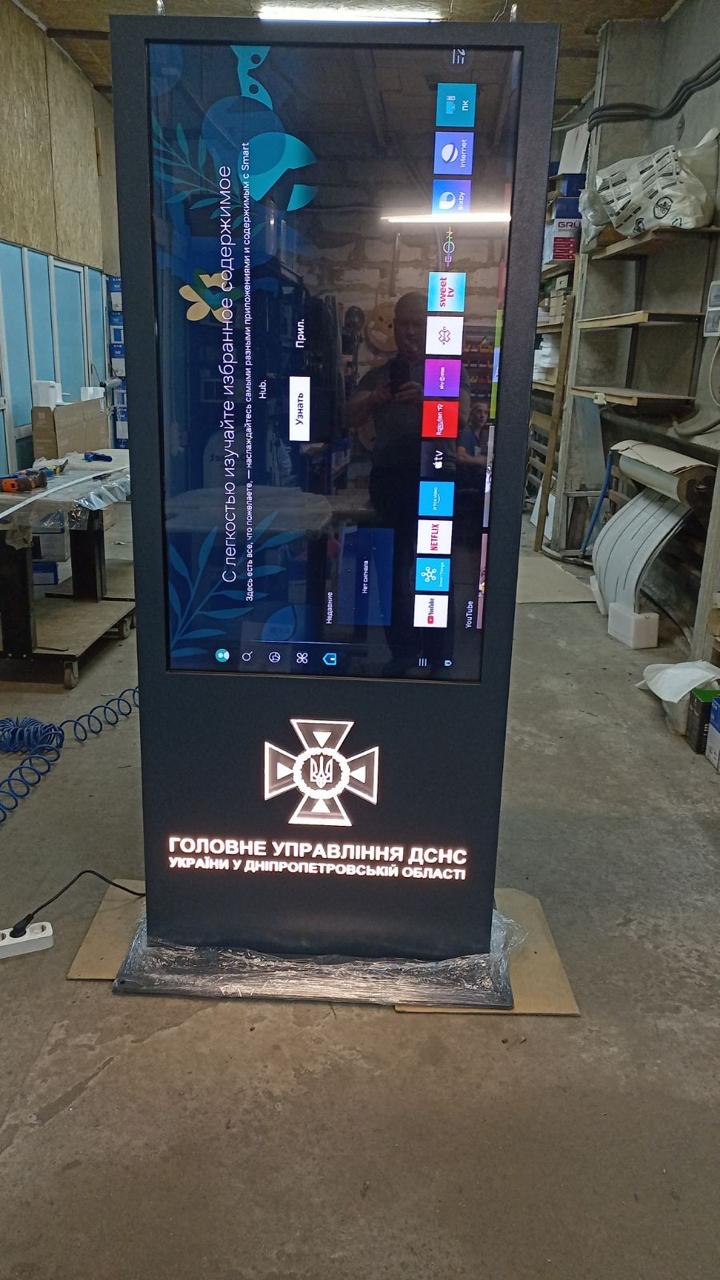

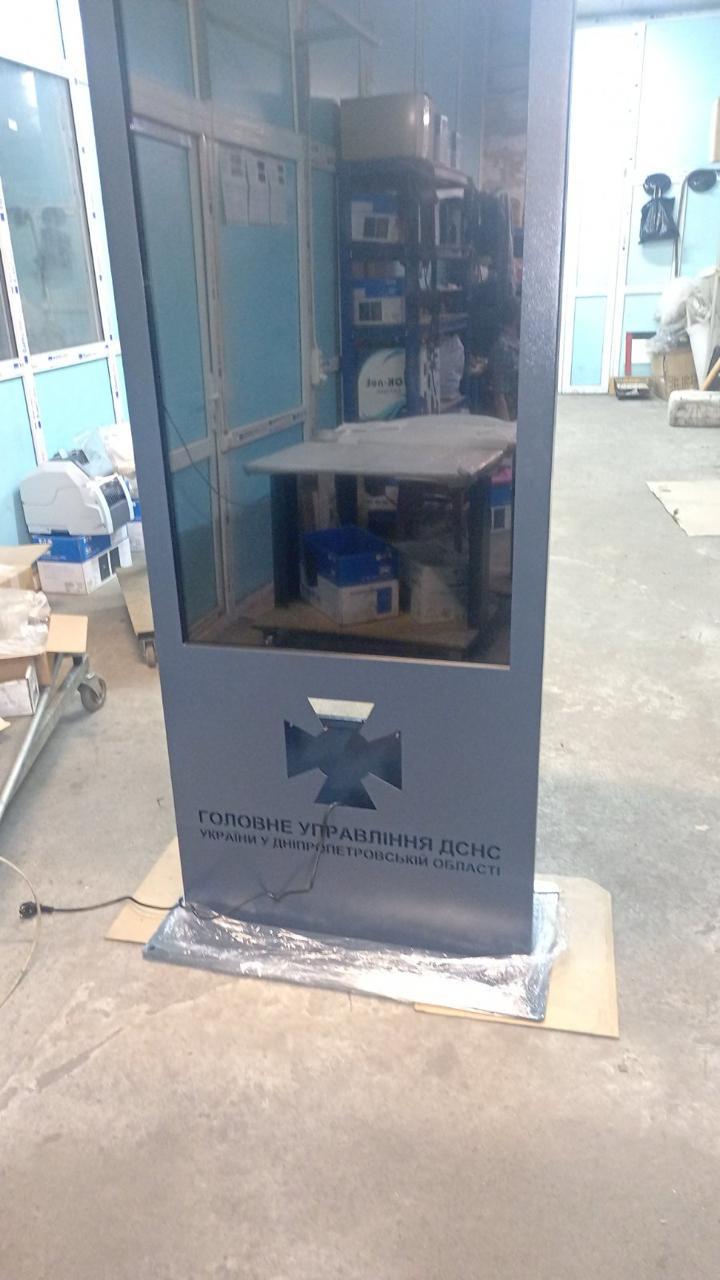

The kiosk on the production floor before shipment
QS55 — at a glance
