247 QS17 Registration Terminals and 110 QS43 Main Display Panels Delivered to the Pension Fund of Ukraine
Between November 2025 and March 2026, QSolutions LLC designed the production documentation, manufactured and delivered 247 QS17 self-service registration terminals and 110 QS43 main queue display panels to Pension Fund of Ukraine offices nationwide — at compressed lead times, with full in-house manufacturing.
Express delivery for the Pension Fund of Ukraine
In October 2025, the Pension Fund of Ukraine announced a series of tenders for self-service registration terminals to be deployed across regional branches nationwide — rolling out a unified electronic queue management system that replaces traditional paper-based queueing and delivers a transparent, predictable visitor experience.
QSolutions LLC won 18 tender procedures on the Prozorro public-procurement platform and fulfilled deliveries between November 2025 and March 2026. The team produced the manufacturing documentation, built the terminal enclosures, configured the main display panels, performed assembly and electrical wiring, and installed the queue management software — at lead times well below industry standard for orders of this scale.
In-House Manufacturing Documentation
Engineering team developed enclosure drawings, mounting layouts and cable harnesses tailored to Pension Fund specifications.
Full Production Cycle

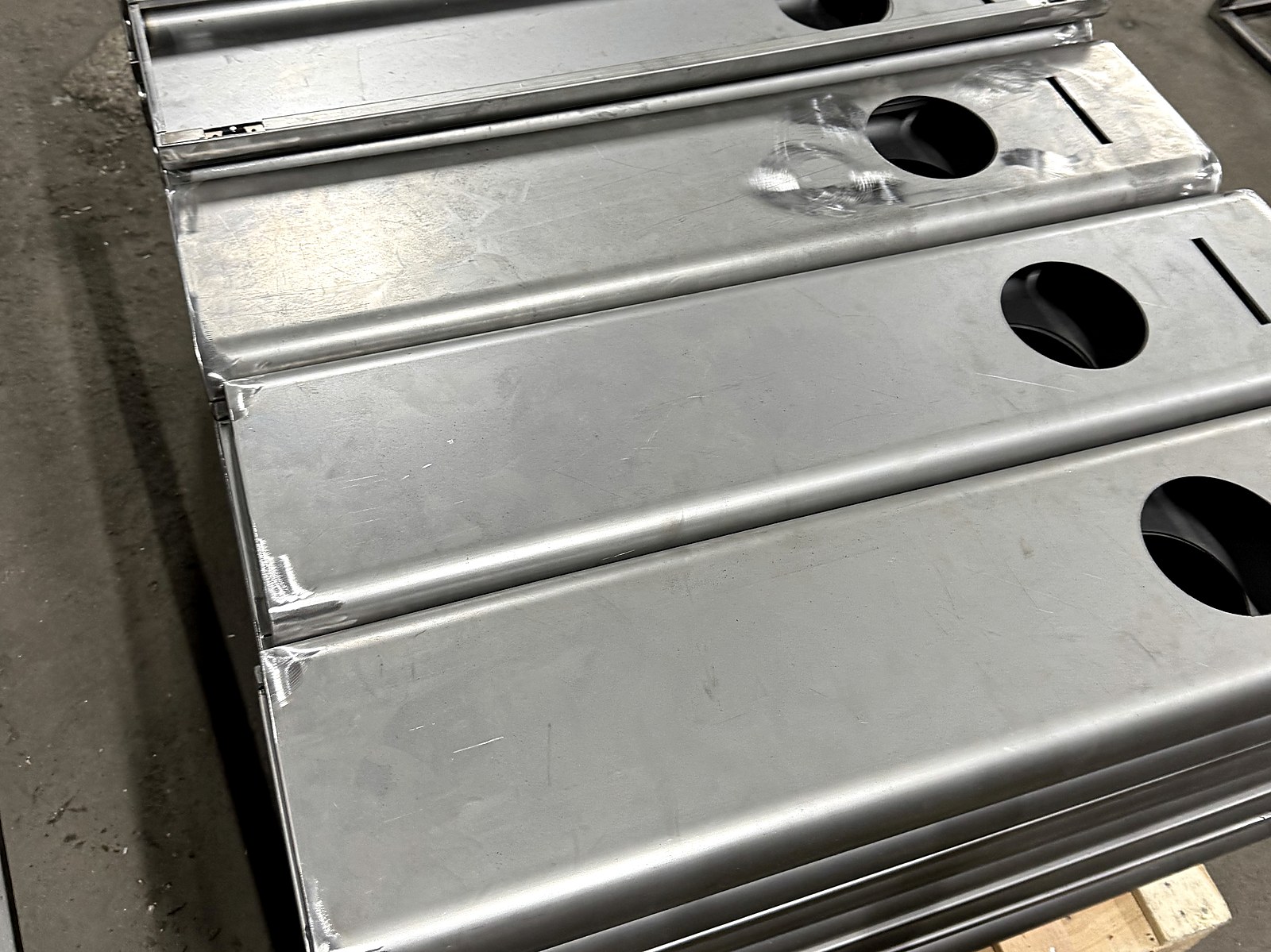

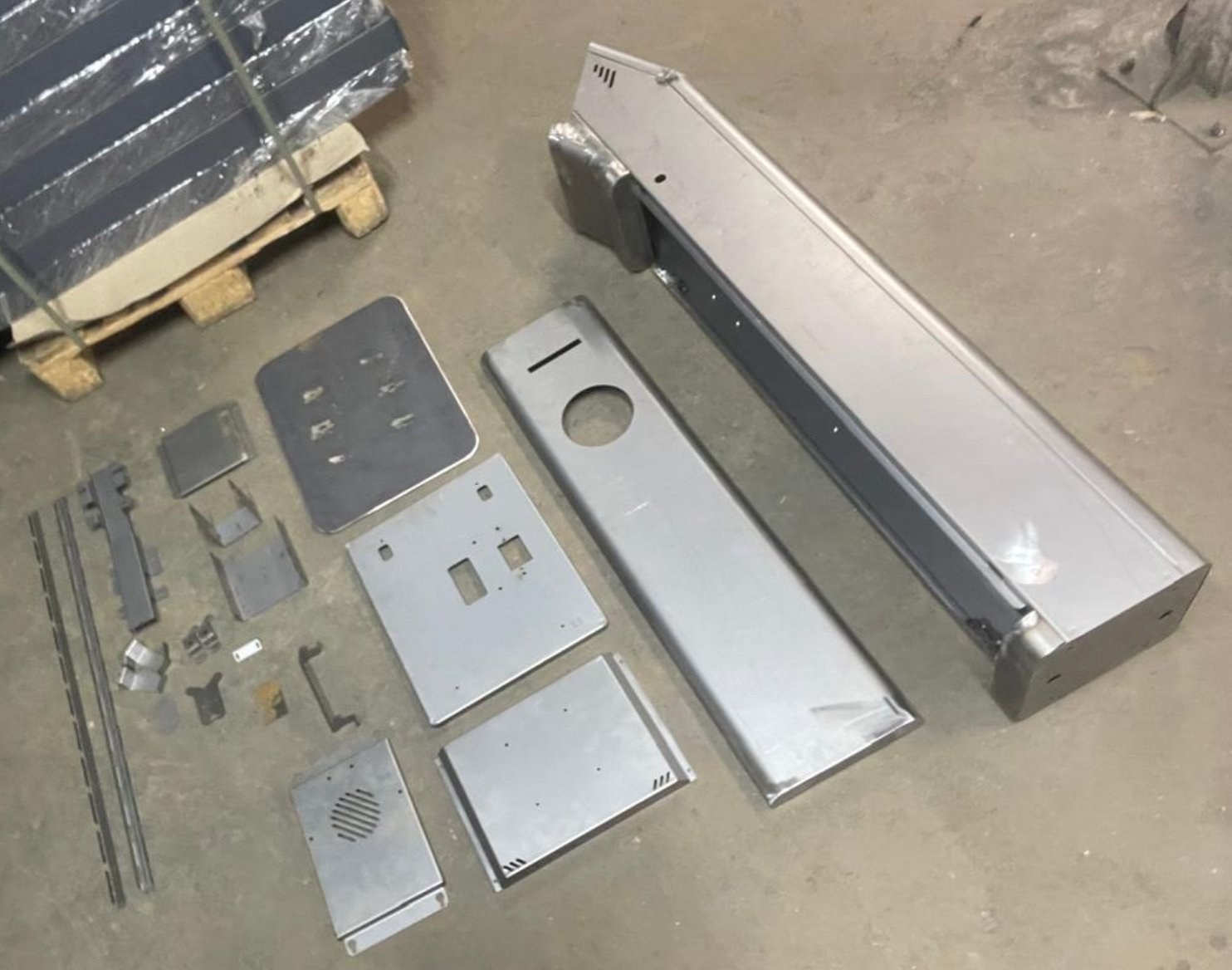

Laser cutting, bending, welding, powder coating and electrical wiring — all performed in-house, no subcontractors.
18 Prozorro Tenders Won
All deliveries executed under open public procurement procedures.
Compressed Timeline
From tender announcement to full delivery — under five months across 18 procedures.
What was delivered in each kit

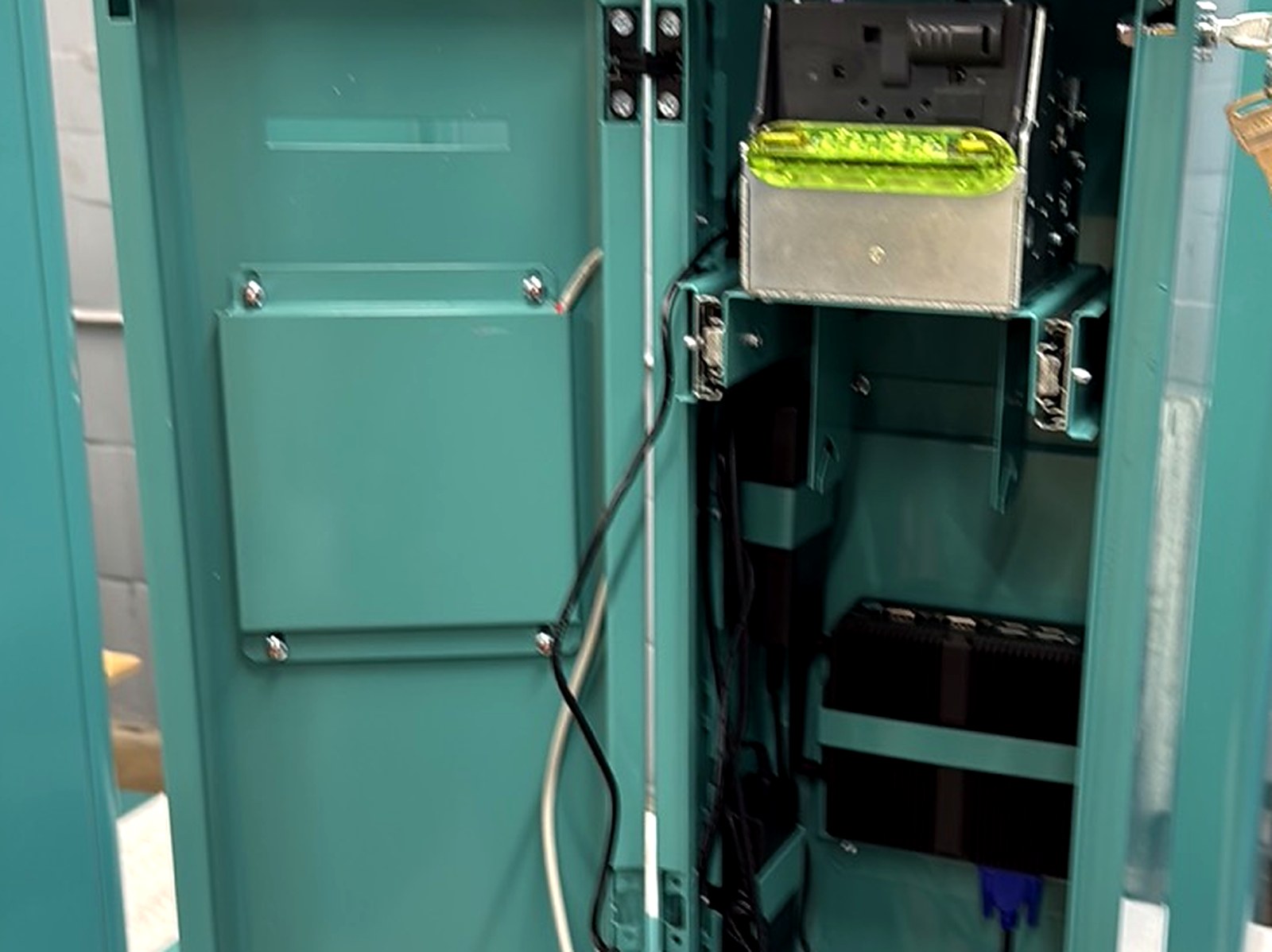

QS17 Registration Terminal
Self-service touchscreen registration point with thermal ticket printing
- Display17″ touchscreen, 1280×1024, 5:4
- CPU / MemoryIntel Celeron 4-core / 8 GB DDR3
- Storage128 GB SSD
- OSUbuntu 16.04
- Thermal printer80 mm, 203 dpi, 150 mm/s
- Interfaces5×USB 2.0, 1×USB 3.0, COM, 2×Ethernet
- Dimensions1403 × 450 × 335 mm

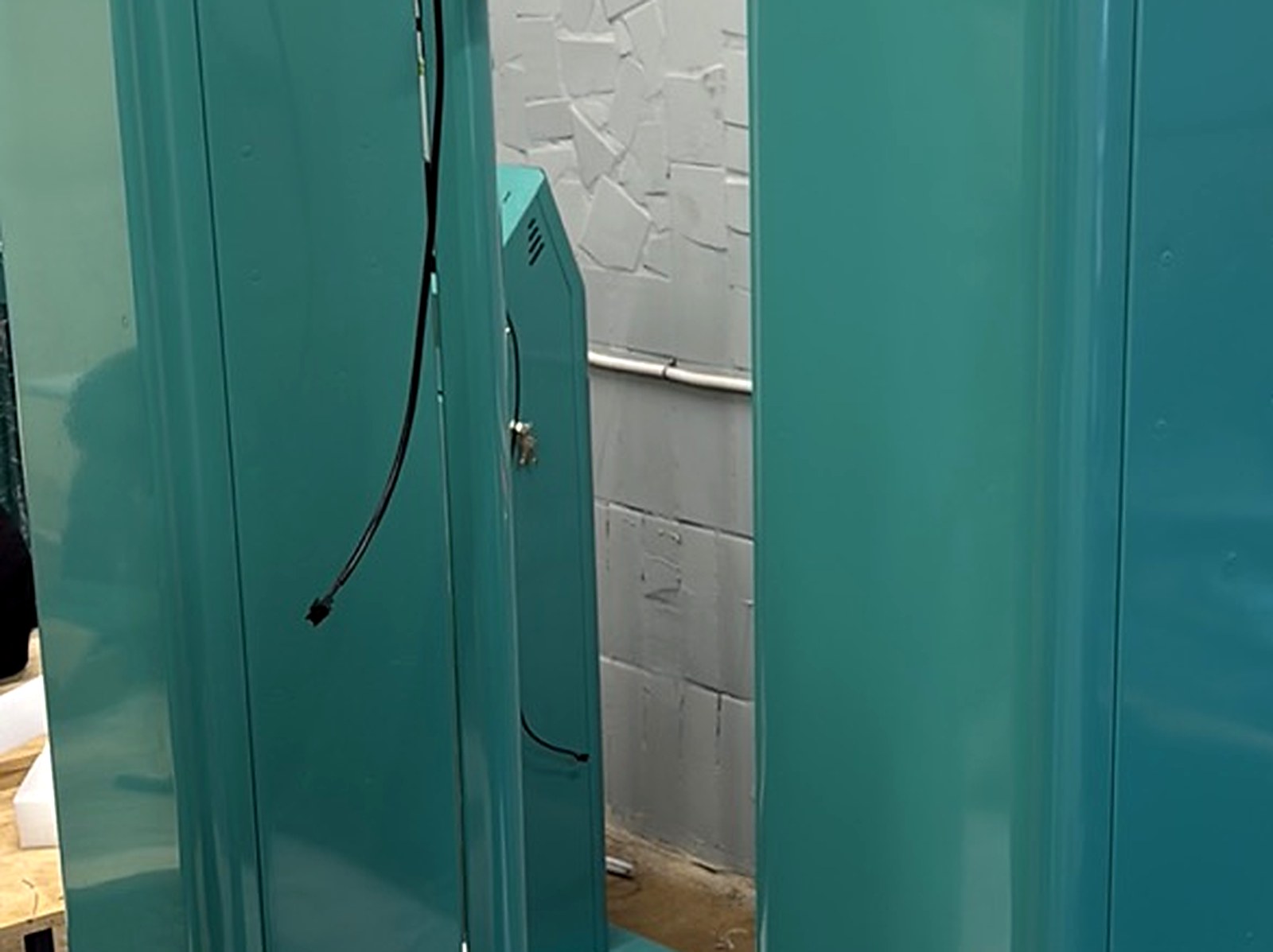

- Enclosure / ColorVandal-resistant steel, RAL 6033
- Pension Fund logo⌀120 mm, illuminated, white LED
- UPS600 VA, 360 W, 160–275 V input
- Warranty12 months
QS43 Main Queue Display
Large-format display panel for the public service hall
- Diagonal40″ or larger
- Resolution1920 × 1080 (Full HD)
- TechnologyLCD, Direct LED
- Viewing angle178° × 178°
- Brightness220 cd/m²
- SurfaceGlossy
- Interfaces2×HDMI, 2×USB, RCA
- CableHDMI v1.4, 15 m included
- MountWall mount, VESA 200×100 / 200×200

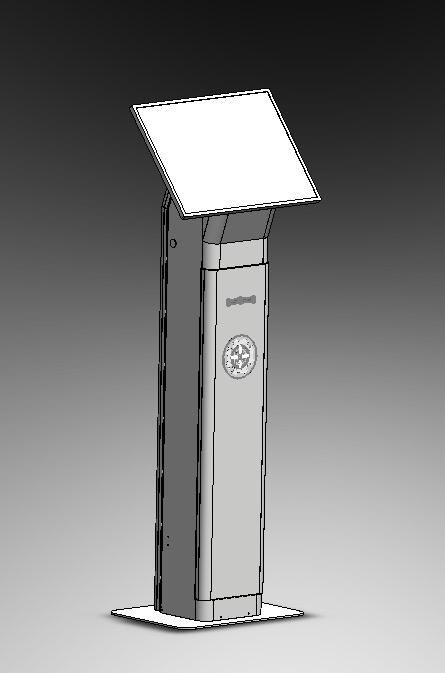

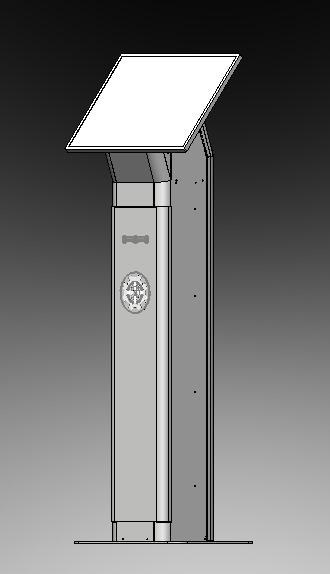

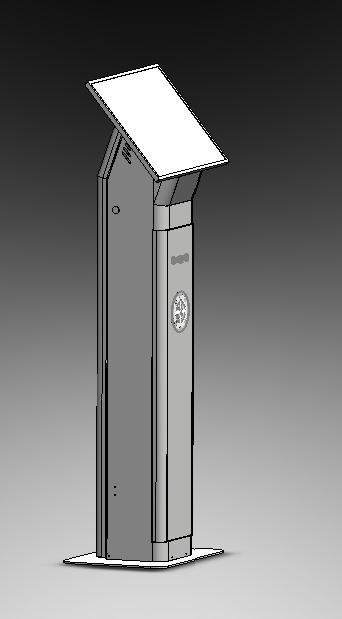

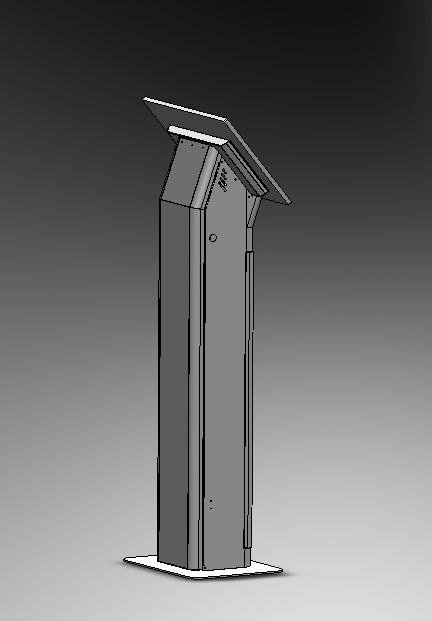

QS17 3D engineering model

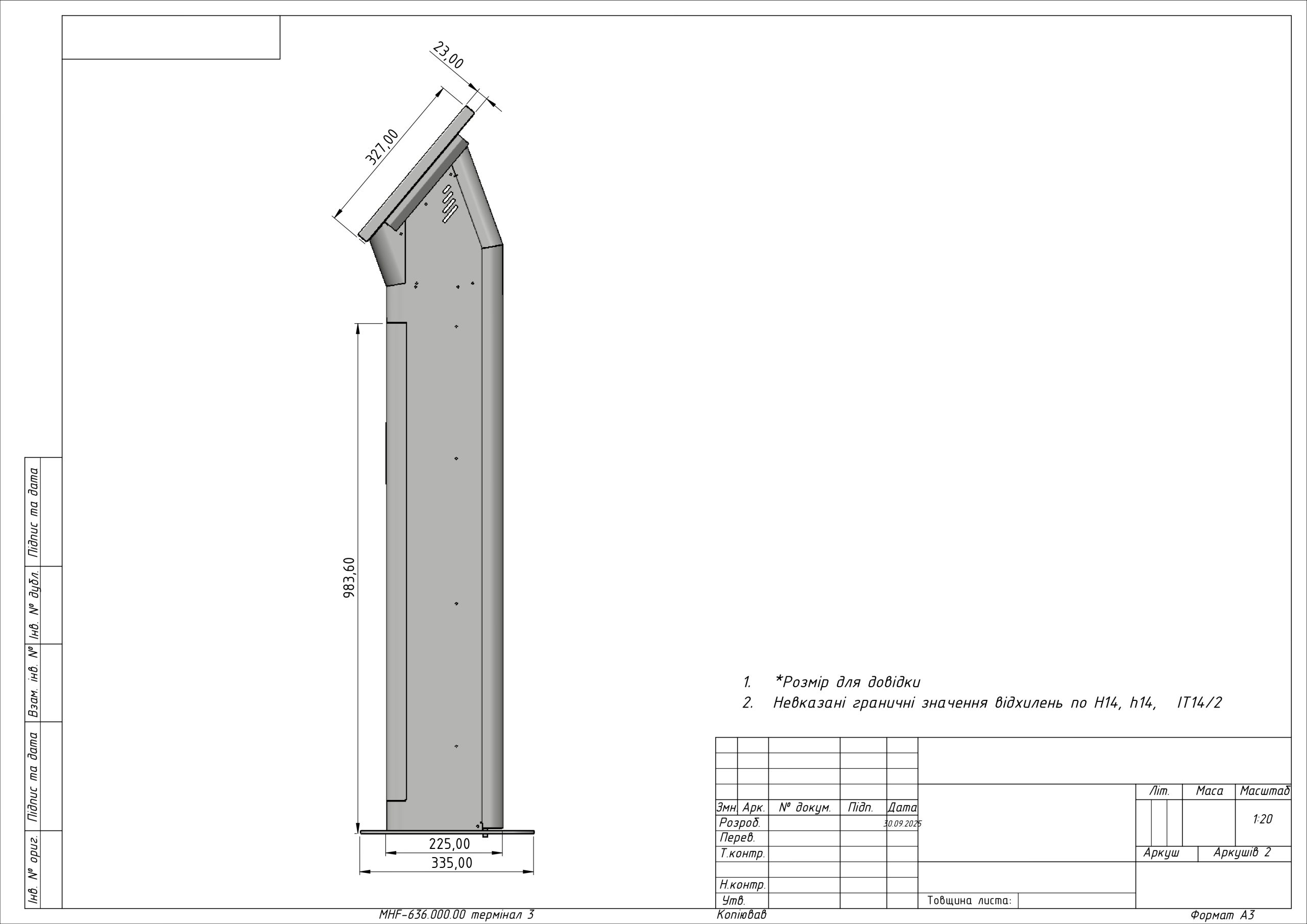

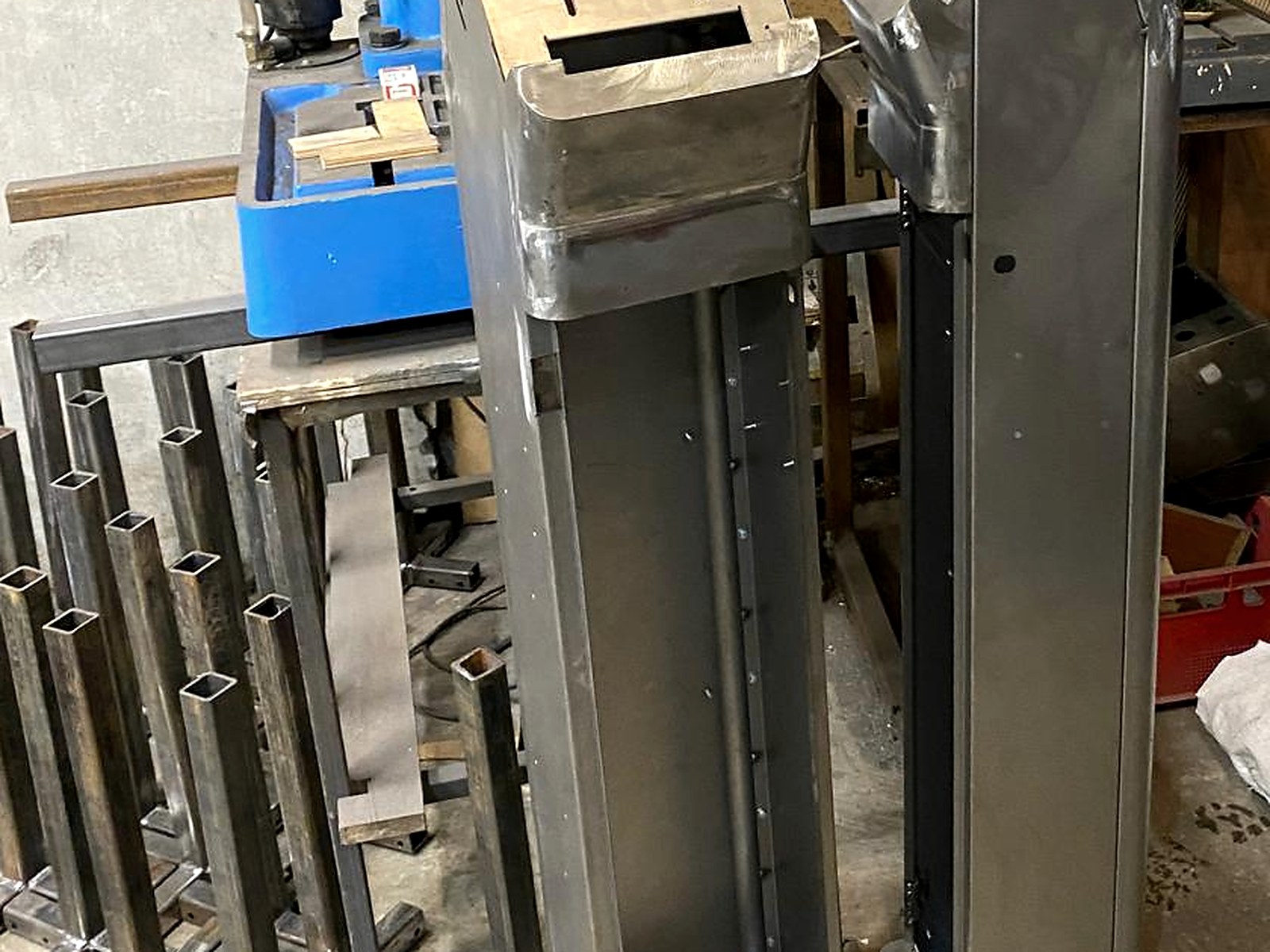

From drawing to finished product

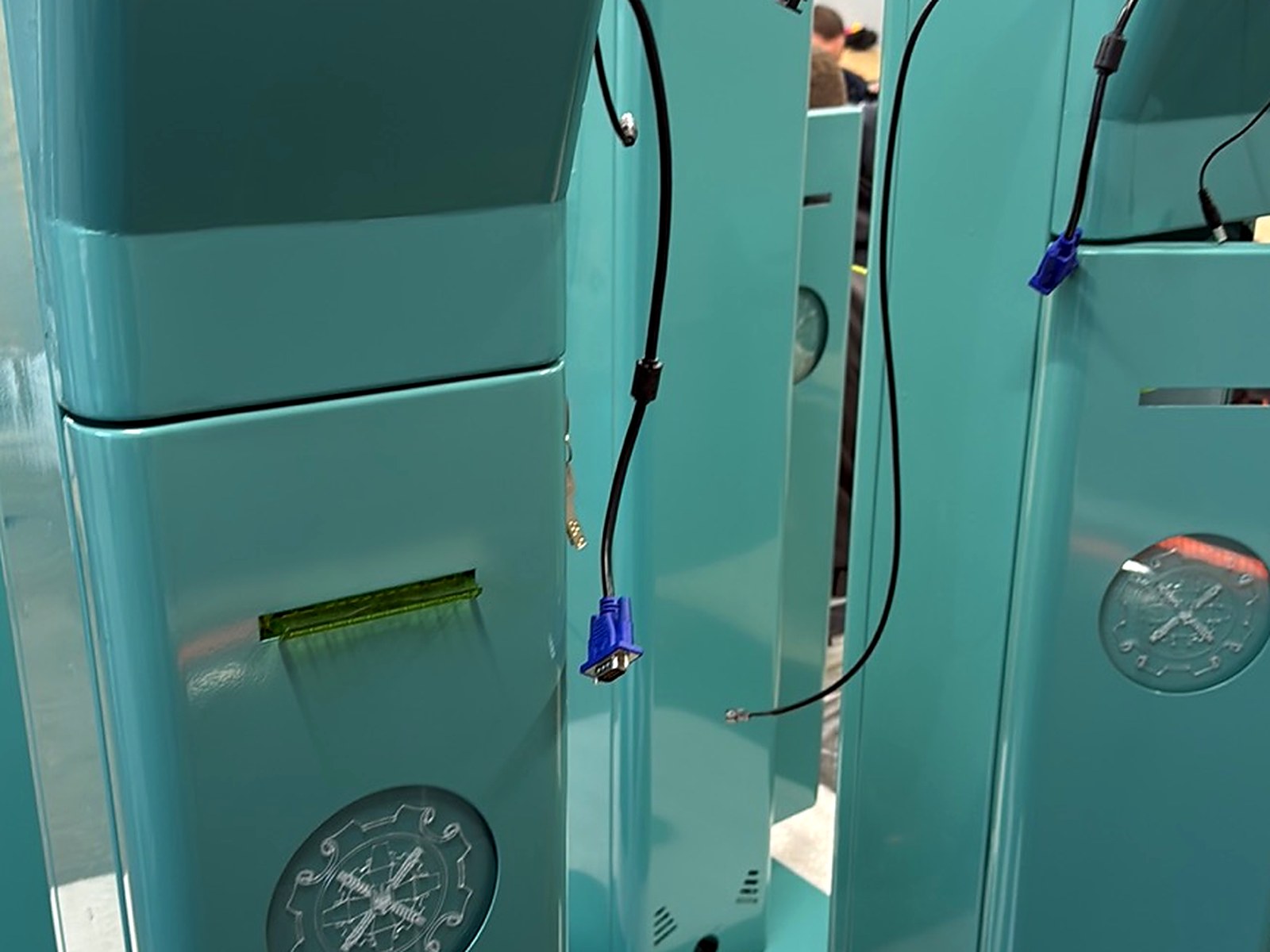

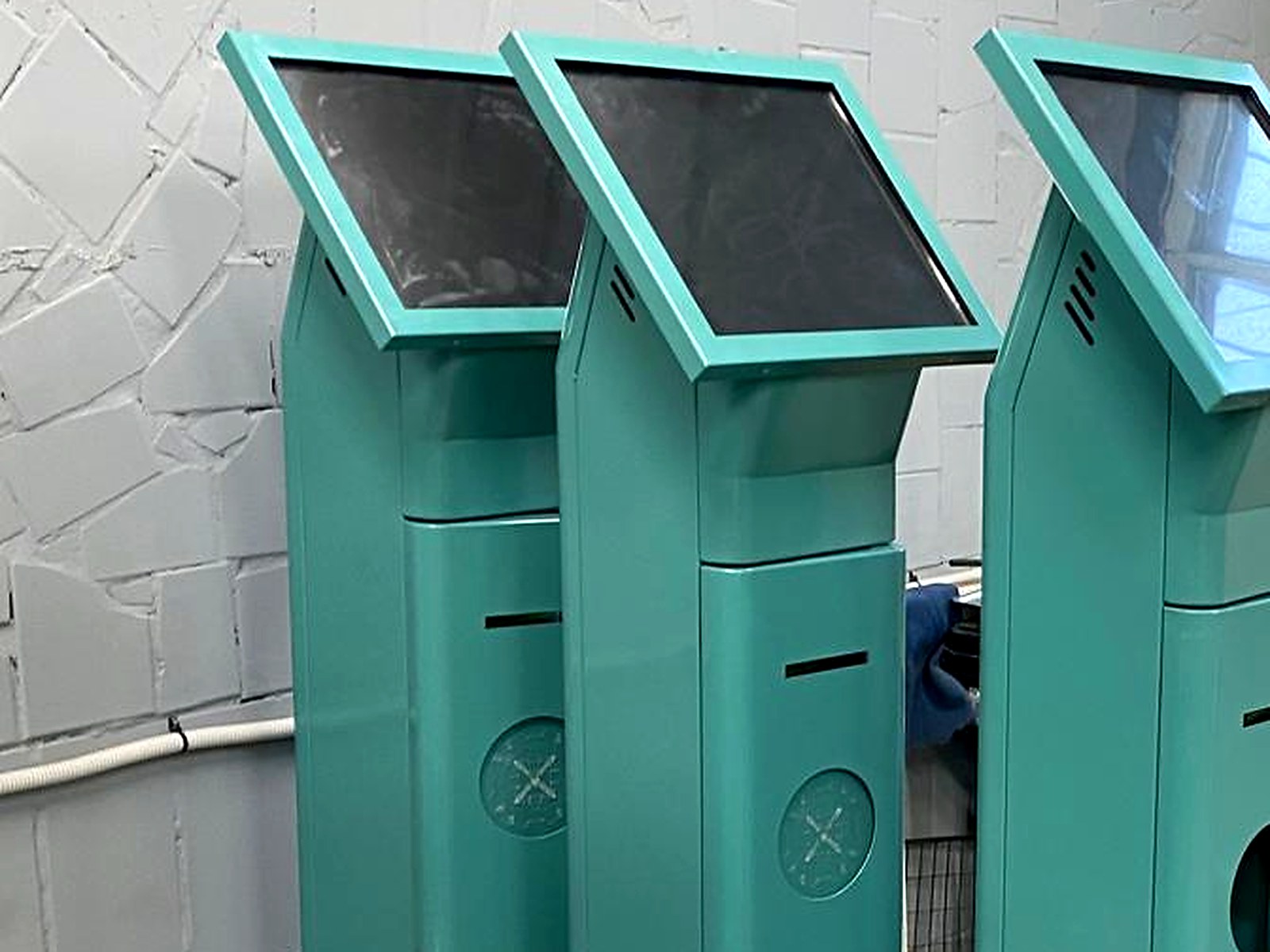

Production batch ready for shipment
Deliveries under open Prozorro tenders
Each delivery was executed under a separate tender procedure. All 18 tenders are publicly available for review on the Prozorro platform:
